lgct Laxman Gehlot Case Tools lgct
Dfd Report Erd Report Class Report

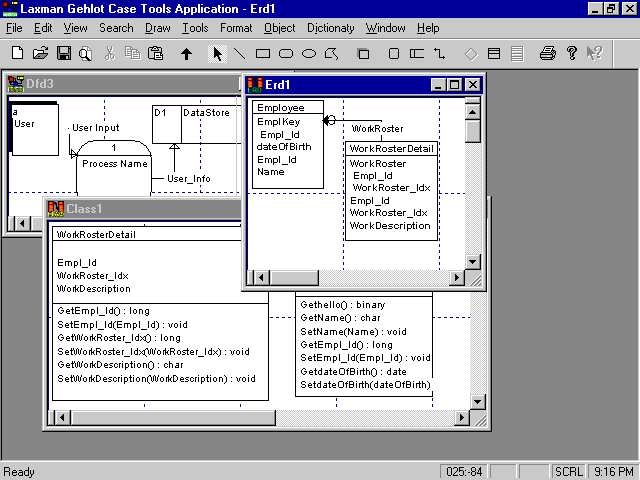

INTRODUCTION:
Laxman Gehlot Case Tools offers an advance set of integrated tools for application analysis and design. Its structured design methods can improve design quality and increase productivity threefold. LGCT supports a varity of database products, including Oracle, Rdb, SQLAnyWhere, as well as generic RDBMS (a super set of the supported RDBMSs). THE LGCT EDITORS LGCT features a complete set of integrated editors, enabling you to diagram and design with unparalleled speed and flexibility. All of the editors use the LGCT Central Dictionary.
EXPERIENCE
LG CASE TOOLS has extensive experience in providing Software Engineering Services
DATA FLOW DIAGRAM EDITOR (DFD)
The Data Flow Diagram Editor lets you visually show the flow of information through your proposed system. LGCT supports the most popular dataflow diagramming method, Gane & Sarson. Modification to one diagram level are autometically reflected on other levels.

Laxman Gehlot Case tools manages DFD Data Flow Diagrams in Software Engineering in the tradional way. Maintenance and Training is also provided.
ENTITY RELATIONSHIP EDITOR(ERD)
The Entity Relationship Diagram Editor modles static relationships between data entities including definitions for keys and triggers. The tool permits both physical and logical view definitions. It supports relational database design, allowing you to specify SQL criteria for each attribute. Views and relationships can be defined. The tool supports relational database design, allowing you to specify SQL criteria for each attribute. Views and relations can be defined.

Laxman Gehlot Case tools manages ERD Entity Relation Diagrams in Software Engineering in the much profesional way.
CLASSES DIAGRAM EDITOR (DFD)
The Classes Diagram Editor enables you to express program logic using the Java program structure method. You can depict get and set properties on the private variables. A multi-level decomposing feature layers a drawing into any number of levels.

Laxman Gehlot Case tools manages Class Diagrams in Software Engineering in the Enterprise way. It generates class from DB tables for programming for EJB (Enterprise Java Beans). It also generates java classes and their methods authomatically.
